Vibro Ripper
Functions
Vibro Ripper MOVIE
Features
Specifiaction

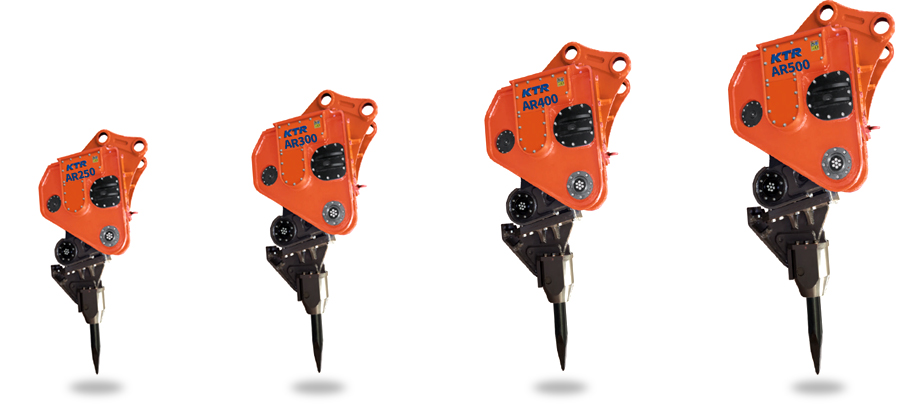

| Model | Unit | AR250 | AR300 | AR400 | AR500 |
|---|---|---|---|---|---|
| Suitable Excavator | ton | 18~26 | 25~35 | 34~45 | 42~55 |
| Weight (Incl. Mounting Cap) | kg | 2900 | 3900 | 4900 | 5600 |

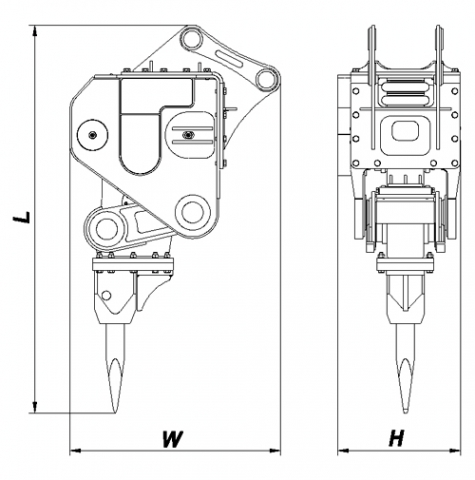

| Dimension(LxWxH) | mm | 2600x1370x880 | 2930x1555x945 | 3190x1670x1030 | 3390x1580x1130 |
| Tool Diameter | mm | 130 | 140 | 150 | 170 |
| Max. Oil Flow | lpm | 200 | 240 | 260 | 320 |
| Max. Oil Pressure (Min. Setting Pressure) | bar | 350 (300) | 350 (300) | 350 (300) | 350 (300) |
| Return Pressure | bar | 6 | 6 | 6 | 6 |
| Frequency | Bpm | 2800~3500 | 2500~3500 | 2000~2700 | 1900~2400 |
