Breaker Spare Parts For All Brands

  • home
  • Products
  • Breaker Spare Parts For All Brands
  • Chisel
  • Main Parts

Chisel

Features

  • High quality materials
  • State-of-the-art heat treatment technology ensures outstanding durability
  • OEM supply reference to the excavator & breaker maker such as DOOSAN, Montabert

Specifiaction

SOOSAN D(mm) L(mm) W(kgs) SOOSAN D(mm) L(mm) W(kgs)
SH200 70 600 17 SB40 68 700 16
SH400 95 840 40 SB43 75 800 20
SH700 105 930 57 SB45 85 900 30
SH-18G 120 1000 80 SB50 100 1000 50
SH-20G 135 1200 114 SB60 125 1100 90
SH-30G 150 1300 162 SB70 135 1200 114
SH-35G 140 1300 141 SB81 140 1300 140
SH-40G 160 1400 200 SB100 150 1400 170
SB10 40 450 4 SB121 155 1500 190
SB20 45 500 6 SB130 165 1600 240
SB30 53 550 8 SB151 175 1600 270
SB35 60 600 11
DAEMO D(mm) L(mm) W(kgs) DAEMO D(mm) L(mm) W(kgs)
DMB 03 70 600 15 DMB S1300V 105 975 60
DMB 04 95 900 43 DMB S1800V 120 1165 93
DMB 06 105 930 57 DMB S2200V-II 135 1250 127
DMB S150V 57 650 12 DMB S2300V 135 1200 121
DMB S300V 62 625 13 DMB S2500V 145 1280 149
DMB S500V 70 730 20 DMB S3000V 150 1400 175
DMB S700V 78 806 27 DMB S3600S 150 1400 175
DMB S900V 85 850 34 DMB S5000V 165 1650 249
EVERDIGM D(mm) L(mm) W(kgs) EVERDIGM D(mm) L(mm) W(kgs)
RHB 301V 45 480 4 RHB 313V 105 1000 62
RHB 302V 50 490 7 RHB 320V 125 1150 100
RHB 303V 55 500 8 RHB 321 130 1200 113
RHB 304V 58 600 11 RHB 322V/325 135 1200 120
RHB 305V 68 700 21 RHB 328/330/332 150 1450 181
RHB 306 80 850 30 RHB 333 155 1450 186
RHB 308V 85 800 31 RHB 337 157 1450 210
RHB 309 85 900 35 RHB 340 165 1450 219
RHB 350 180 1600 285
MSB D(mm) L(mm) W(kgs) MSB D(mm) L(mm) W(kgs)
MS200 70 680 19 MS800 160 1300 185
MS250 75 730 23 MS900 170 1450 233
MS300 85 790 32 SAGA20 48 500 6
MS400 95 905 45 SAGA30 62 580 12
MS450 100 920 51 SAGA40 68 600 15
MS500 110 950 64 SAGA50 68 697 17
MS550 120 1050 84 SAGA120 98 950 49
MS600 130 1100 103 SAGA200 135 1200 122
MS700 140 1200 131 SAGA350 153 1400 176
MS750 160 1300 185
D&A D(mm) L(mm) W(kgs) D&A D(mm) L(mm) W(kgs)
8V 45 550 6 150V 115 1150 84
15V 57 650 12 180V 125 1200 104
20V 57 650 12 200V 125 1200 104
30V 70 730 20 220V 135 1300 132
50V 70 730 20 300V 150 1400 175
70V 80 900 32 360V 155 1450 193
80V 90 950 43 450V 165 1650 249
100V 95 1000 50 550V 175 1700 289
130V 105 1060 65
KOMAC D(mm) L(mm) W(kgs) KOMAC D(mm) L(mm) W(kgs)
RM45 45 475 5 RM180 180 1500 265
RM48 47.5 570 7 RM195 195 1600 330
RM56 55.4 620 10 RM215 215 1700 430
RM65 64.4 645 14 KB150 46 500 5
RM75 73 700 20 KB200 53 580 9
RM80/82 79 700 24 KB300 68 690 15
RM85/90 89 820 36 KB350 75 750 20
RM110 109 960 60 KB400 85 800 30
RM115 114 1025 70 KB1000 100 1000 55
RM120 119 1075 80 KB1500 120 1200 95
RM130 130 1125 105 KB2000 135 1200 120
RM140 140 1175 125 KB2000Ⅱ 135 1250 125
RM145 144 1300 145 KB3500 140 1300 140
RM150 150 1350 165 KB4000 155 1400 185
RM160 159 1400 195
FURUKAWA D(mm) L(mm) W(kgs) FURUKAWA D(mm) L(mm) W(kgs)
HB100 55 500 9 HB40G 160 1400 200
HB200 70 510 13 HB50G 180 1500 270
HB700 104 940 49 F3 52 520 8
HB1200 140 1200 130 F4 60 540 11
HB1G 36 400 3 F5 68 610 16
HB2G 45 460 4 F6 75 720 23
HB3G 60 560 11 F9 90 800 32
HB5G 70 650 20 F12 105 1000 66
HB8G 90 750 30 F19 120 1100 86
HB10G 105 1000 65 F22 135 1200 117
HB15G 120 1000 80 F27 140 1300 141
HB20G 135 1200 120 F35 150 1400 164
HB30G 150 1300 157 F45 165 1450 220
N.P.K D(mm) L(mm) W(kgs) N.P.K D(mm) L(mm) W(kgs)
H-08X 45 480 5 E-18X 146 1300 148
H-1XA 57 580 10 E-106 41 410 4
H-2XA 65 620 15 E-200 42 480 5
H-2X/3XA 75 720 22 E-201 50 510 8
H-4X 90 780 30 E-202 57 580 12
H-5X/6X 96 930 50 E-203 66 740 18
H-7X 105 930 57 E-204 76 800 22
H-8XA 115 1000 72 E-205 86 890 34
H-9X 115 1000 72 E-208 116 1160 74
H-10X 126 1100 93 E-210 126 1100 93
H-10XB/10XE 126 1100 93 E-212 126 1100 93
H-11X/14X 140 1250 140 E-213 136 1200 122
H-12X 135 1200 115 E-215 140 1200 130
H-16X 145 1300 148 E-216 146 1300 148
H-18X 146 1400 160 E-218 146 1300 148
H-20X 156 1400 183 E-220 156 1400 183
H-25X 165 1450 220 E-224 156 1450 188
E-12X 126 1100 93 E-225 165 1520 228
E-15X 136 1200 120 E-240 184 1740 320
TOKU D(mm) L(mm) W(kgs) TOKU D(mm) L(mm) W(kgs)
TNB-1E 50 500 6 TNB-13E 135 1150 110
TNB-2E 58 590 10 TNB-14E/16E 135 1150 117
TNB-4E 75 710 20 TNB 150 135 1200 121
TNB-5E/6E 95 800 40 TNB-22E 145 1200 136
TNB-7E/8E/10E 115 930 63
TOYO D(mm) L(mm) W(kgs) TOYO D(mm) L(mm) W(kgs)
THBB 71 45 480 5 THBB 1401 130 1100 92
THBB 101 57 580 10 THBB 1400 136 1150 114
THBB 301 70 740 19 THBB 1600 138 1200 127
THBB 401 80 900 32 THBB 2000 150 1280 155
THBB 801 100 930 49
OKADA D(mm) L(mm) W(kgs) OKADA D(mm) L(mm) W(kgs)
OUB-301 50 500 6 OUB-312 130 1150 96
OUB-302 61 550 9 OUB-316 140 1250 130
OUB-303 68 700 12 OUB-318 150 1400 170
OUB-304 74 700 19 UB-8 98 1000 45
OUB-305 85 900 32 UB-11 122 1100 83
OUB-308 110 1000 54 UB-14 136 1200 117
OUB-310 122 1100 86
ATLAS COPCO D(mm) L(mm) W(kgs) ATLAS COPCO D(mm) L(mm) W(kgs)
HM45 42 470 6 HM600/601 100 1000 55
HM50/55 45 560 7 HM700/701/702/705 115 1150 86
HM60V 48 500 6 HM710/720CS/V 115 1080 82
HM60/75 55 590 10 HM780 120 1100 87
HM85/90V 62 600 11 HM780V 120 1100 89
HM100/110 65 700 18 HM800 135 1150 115
HM130/131/135/140V 65 780 18 HM900/901/902 135 1150 115
HM170/185/190V 75 800 25 HM950/960CS/V 135 1080 110
HM200 80 835 29 HM1000 140 1200 130
HM220V 80 900 30 HM1000V 140 1200 128
HM230V 80 800 28 HM1200 150 1250 155
HM300/301/305 80 900 30 HM1300/1500CS/V 150 1200 151
HM350V 90 900 40 HM1800/2000CS/V 160 1400 220
HM400/401 80 800 27 HM2100 165 1300 220
HM550/560CS/V 100 1000 55 HM2200/2500CS/V 180 1500 270
HM580 100 1000 55
MONTABERT D(mm) L(mm) W(kgs) MONTABERT D(mm) L(mm) W(kgs)
BRH 40 45 500 6 BRP 60/70 50 510 7
BRH 75/76/90/91 60 550 10 BRP 85/100 62 620 12
BRH 125 80 700 21 BRP 130/150 75 740 21
BRH 250/270 95 850 40 BRV 32 122 1100 90
BRH 501/570 114 1000 76 BRV 43 150 1300 160
BRH 620 114 1000 71 BRV 45 150 1300 160
MONTABERT D(mm) L(mm) W(kgs) MONTABERT D(mm) L(mm) W(kgs)
BRH 625/900 118 1000 74 BRV 52 162 1350 192
BRH 750 120 1100 86 BRV 53 170 1550 230
BRH 1100 140 1350 135 BRV 55 170 1500 245
BRP 30 40 410 4 BRV 1600 140 1250 140
BRP 45/50 50 430 6
RAMMER D(mm) L(mm) W(kgs) RAMMER D(mm) L(mm) W(kgs)
S-21 45 480 5 S-82 140 1200 130
S-20/22 53 530 8 S-83/D-110 140 1200 130
S-23/D-30 63 680 15 S-84 160 1350 190
S-24 70 730 21 S-86 170 1450 235
S-25 70 750 22 E-64 106 1050 65
S-26/D-50 90 850 34 E-66 115 1050 78
S-29 95 900 45 E-68 130 1100 101
S-52 110 900 55 G-80 140 1200 135
S-54/D-60 115 1050 80 G-90 160 1300 182
S-55 115 1050 78 G-100 170 1450 240
S-56/D-70 130 1100 102 G-120 195 1700 360
INDECO D(mm) L(mm) W(kgs) INDECO D(mm) L(mm) W(kgs)
MES 121/150 45 440 5 MES 3000 140 1200 130
MES 180/181/200 48 550 6 MES 3500 145 1300 155
MES 300/301/350/351 55 600 10 MES 4000 150 1300 160
MES 451/521/550 64 600 14 MES 5000 160 1350 190
MES 601/621/650 80 650 22 MES 7000 180 1450 260
MES 1200 90 800 34 MES 8500 195 1530 320
MES 1500/HB19 110 900 55 MES 12000 215 1580 400
MES 1750 114 1000 72 HB 5 64 600 14
MES 2000/HB27 120 1000 78 HB 8 80 700 24
MES 2500 130 1100 101 HB 12 90 800 34
STANLEY D(mm) L(mm) W(kgs) STANLEY D(mm) L(mm) W(kgs)
MB125 45 430 4 MB3950 140 1250 145
MB250/350 64 600 14 MB30EX 100 955 55
MB550 70 710 20 MB40EX 125 997 87
MB800/875 80 750 25 MB50EX 140 1300 146
MB1500/1550 102 920 52 MB70EX 155 1500 209
MB1950/1975 114 1050 75 MB100EX 175 1600 283
  • Chisel
  • Main Parts

Main Parts

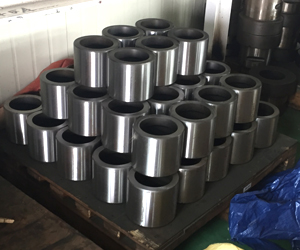

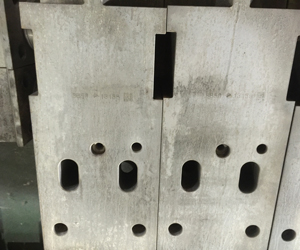

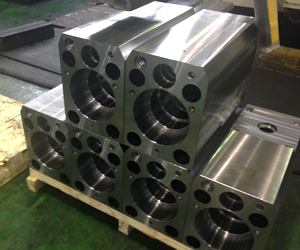

KTR provides hydraulic breaker spare parts such as Piston, Cylinder, Front Head, Back Head, Front Cover, Upper Bush, Lower Bush, Through Bolt Ass’y, Tie Rod, Side Bolt & Nut, Accumulator, Rod Pin, Tool Pin, Stop Pin, Control Valve, Valve Sleeve, Valve Cap, Back Head Charging Kit, 3-Way Valve, etc.
